Fluorescence Illuminator for Microscopes and Custom Optical Systems

Patent pending

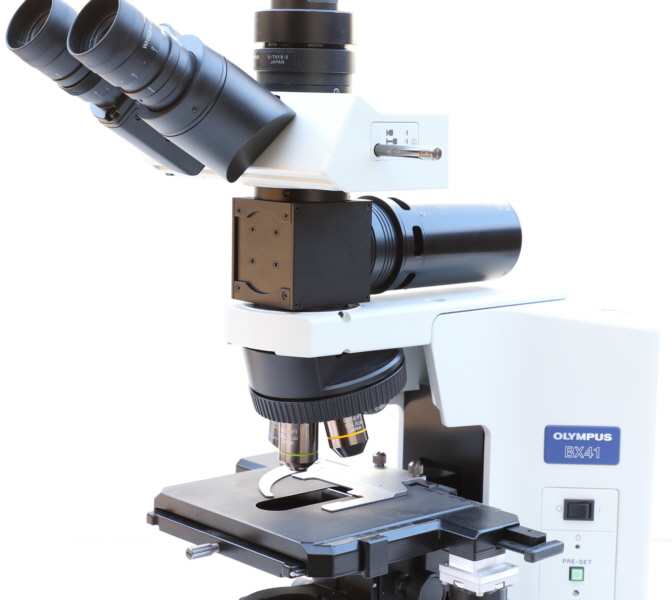

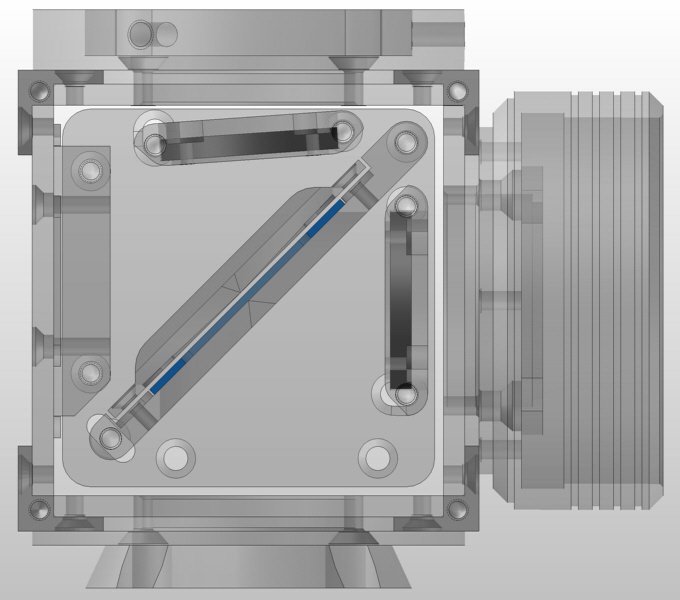

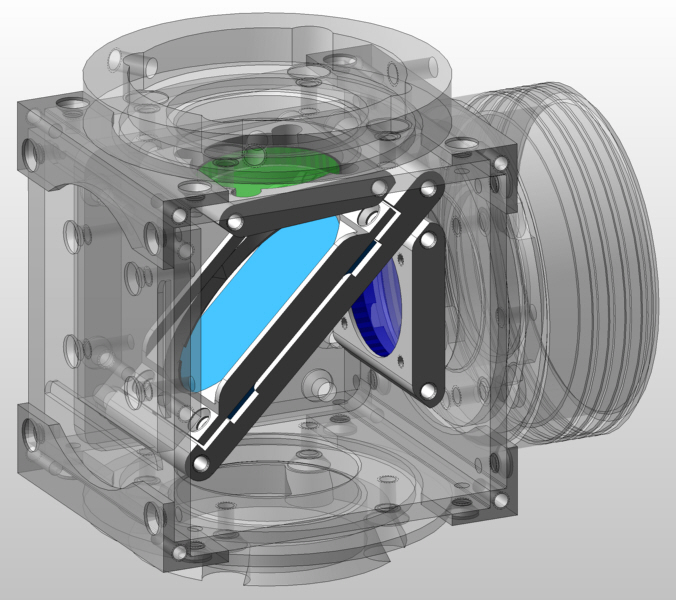

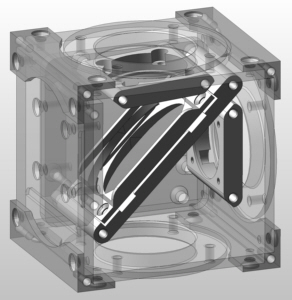

Fluorescence Illuminator provides epi-fluorescent illumination for microscopes and custom optical systems. It has an adjustable arrangement of holders for beam-splitter and excitation and emission filters, which replaces a traditional filter cube. Filter holders are for 25 mm diameter filters. Beam-splitter holder accommodates glass from 25.2 x 35.6 x 1 to 26 x 38 x 3 (mm).  The top and bottom ports have adapters for major microscope brands and for a number of popular tube and cage optical systems. The side port, which interfaces to the light source, similarly, has a variety of interface adapters. (The illuminator 065-02 is shown here with top and bottom adapters 066-01 for Olympus BX microscopes, with collimator 035-00 and a 030-XX series light source)



Fluorescence Illuminator
CSS-FluorIlluminator
P/N and Description Image Price USD

065-00



Fluorescence Illuminator with beamsplitter holder, but without filter holders.

CSS-FluorIlluminator  250.

065-01



Fluorescence Illuminator with beamsplitter holder and with one filter holder.

CSS-FluorIlluminator  275.

065-02



Fluorescence Illuminator with beamsplitter holder and with two filter holders.

CSS-FluorIlluminator  300.
Does not include glass elements and adapters.

Top and Bottom Adapters

P/N and Description Image Price USD

066-01

Adapters for Olympus BX.

CSS-FluorIlluminatorAdap 50.

066-02

Adapters for Nikon Eclipse.

  50.

066-03

Adapters for Zeiss Axio.

  50.

066-04

Adapters for Leica DM.

  50.
Adapters for Tube and Cage Systems

Light Source Adapters (required only for multicolor light sources)

P/N and Description Image Price USD

067-01

Adapter for Olympus BX (female)

25.

067-02

Adapter for Nikon Eclipse (female)

  25.

067-03

Adapter for Zeiss Axio (female)

  25.

067-04

Adapter for Leica DM (female)

  25.
Adapters for Tube and Cage Systems
