LED Light Source Dimensions and Mounting

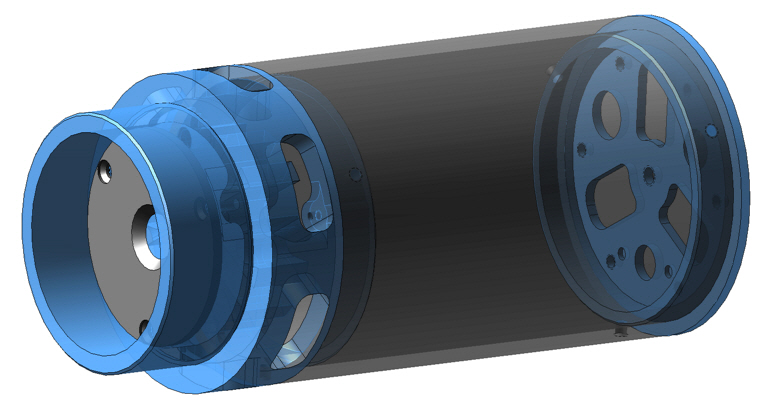

led-assembly

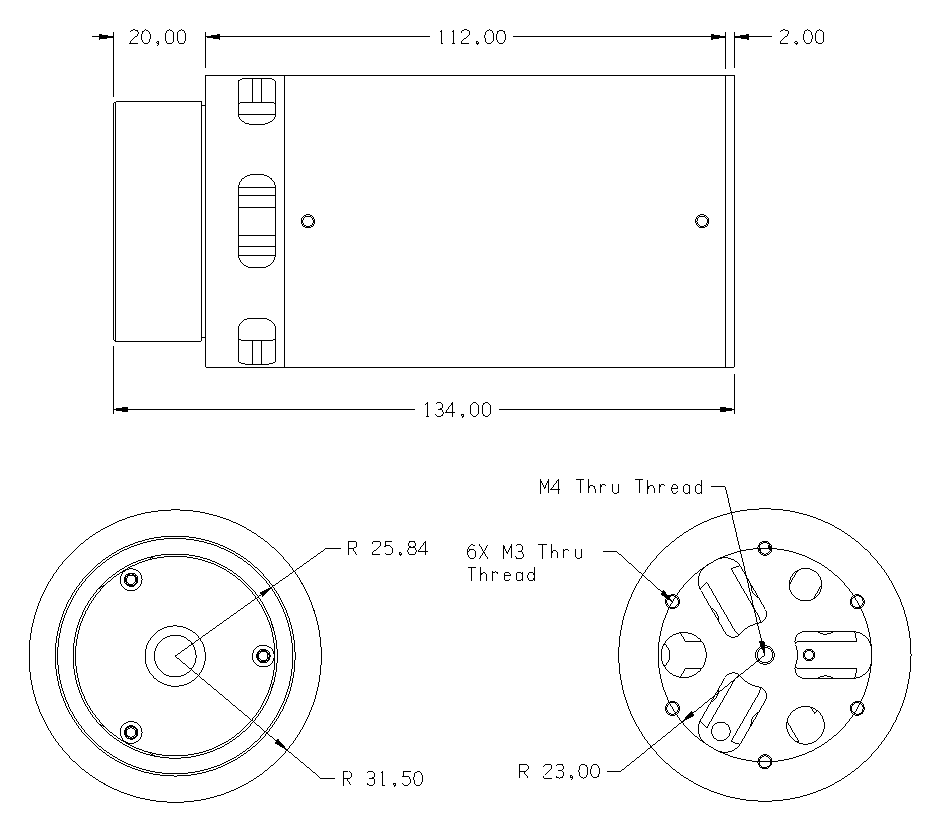

led-assembly-dimensions

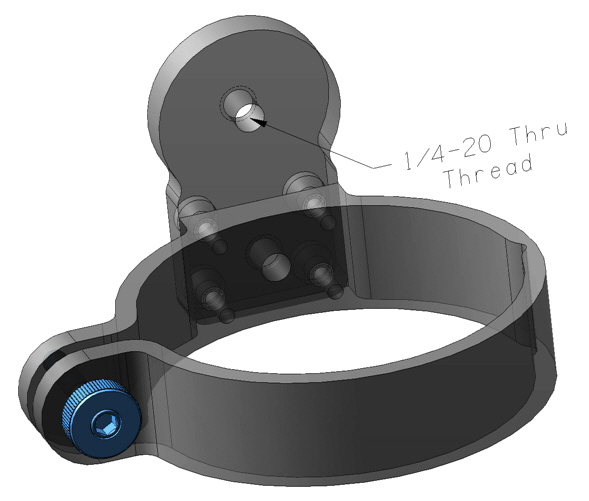

The LED Light Source can be mounted by screwing it into a collimator, by using threaded holes in the back panel, or by fixing it in the bracket below.

 led-mounting-bracket
