Ultra-fast Custom Filter Wheels

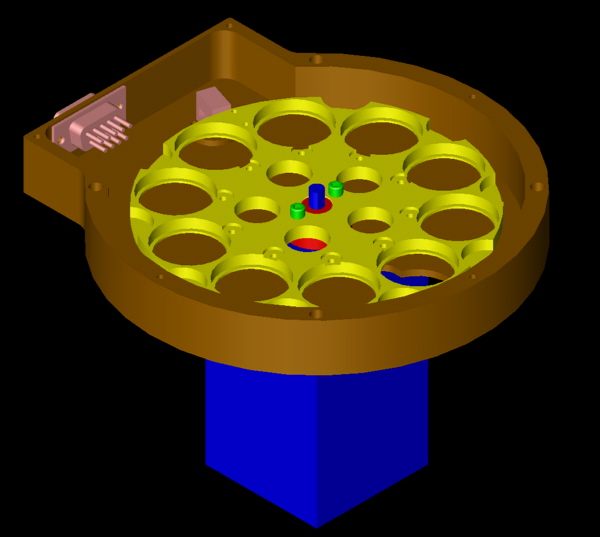

This page shows a filter wheel designed to specific customer requirements. Wheel diameter is 4.5" and it holds 10 25mm filters. The application called for fast switching between filters. This was achieved by using a unique servomotor and optimizing servo parameters. The resulting switching times are:

1 position switch - 30ms
2 position switch - 55ms
3 position switch - 75ms
4 position switch - 95ms
5 position switch - 110ms
