System Configuration for Filter Wheel and Focus Drive with Integrated Controller

Configuration 1

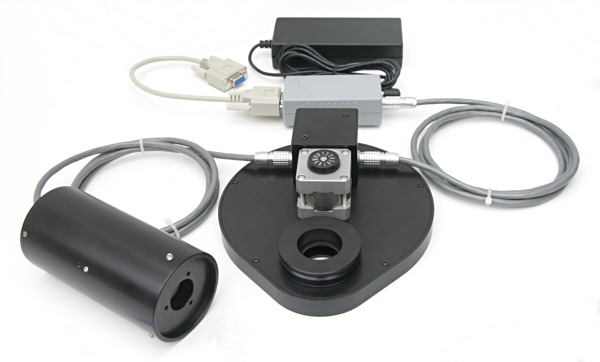

This configuration can be used with a laptop or desktop computer. It has RS232-to-RS485 converter in a small external box. On one side this box connects to computer serial port with a standard serial cable, or to USB port with a USB-to-serial converter cable. On another side it connects to the filter wheel with a custom filter wheel cable and to the power supply. Optional focus drive connects to the loop-through connector in the filter wheel. If the system has only focus drive and no filter wheel, then the focus drive cable plugs directly into the converter box.



Parts to order:



104-96/94 Converter Box with Serial/USB Cable,

104-98    Power Supply,

107-XX-DD Filter Wheel with Integrated Controller

107-99    Filter Wheel Cable

101-XX    Focus Drive with Integrated Controller

Configuration 2

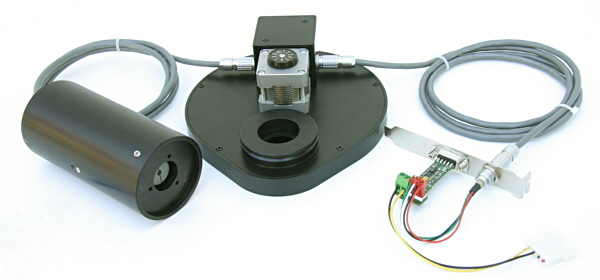

This configuration can be used only in a desktop computer. It has RS232-to-RS485 converter mounted on a standard PC bracket, which can be installed in any available slot. There is a power connector, which connects to the internal computer power supply. The round connector on the bracket connects to the filter wheel with a custom filter wheel cable. Optional focus drive connects to the loop-through connector in the filter wheel. If the system has only focus drive and no filter wheel, then the focus drive cable plugs directly into the bracket. The serial connector on the bracket connects to the computer serial port with a short standard serial cable (not shown), or to USB port with a USB-to-serial converter cable.



Parts to order:



104-97/95 Converter Bracket with Serial/USB Cable,

107-XX-DD Filter Wheel with Integrated Controller

107-99    Filter Wheel Cable

101-XX    Focus Drive with Integrated Controller



Ordering Information

Part number

Description

Price (US$)

104-94 Converter (RS232-RS485) Box with USB Converter and Cable 200.
104-95 Converter (RS232-RS485) Bracket with USB Converter and Cable 200.
104-96 Converter (RS232-RS485) Box with Serial Cable 150.
104-97 Converter (RS232-RS485) Bracket with Serial Cable 150.
104-81 Power Supply 12V 60.
104-82 Power Supply 24V 100.

(order one of: 104-94, 104-95, 104-96, or 104-97)

Specifications and prices are subject to change without notice. Delivery 4-6 weeks ARO.
