Uniformity of Illumination with TOFRA 030-567 LED Light Source

Tests were performed on Olympus BX51 microscope with 10X UPlanFL 0.3NA and 20X UPlanFL 0.5NA objectives and Chroma 39010 - AT - Texas Red/mCherry/AlexaFluor 594 filter cube.

Camera - Basler color camera scA 1400-17gc, chip size 1390*1038 pixels, pixel size 6.45 μm * 6.45 μm, in 8-bit mode.  Gain 200.

Intensity profiles were drawn through the center of the frame and averaged over 20 rows (columns).

Specimen: Chroma Red Autofluorescent Plastic Slide.

Field of View

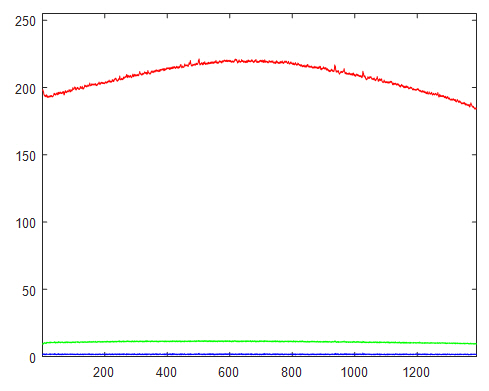

Horizontal Intensity Profile

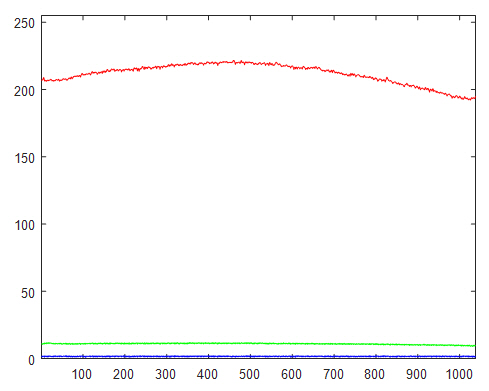

Vertical Intensity Profile

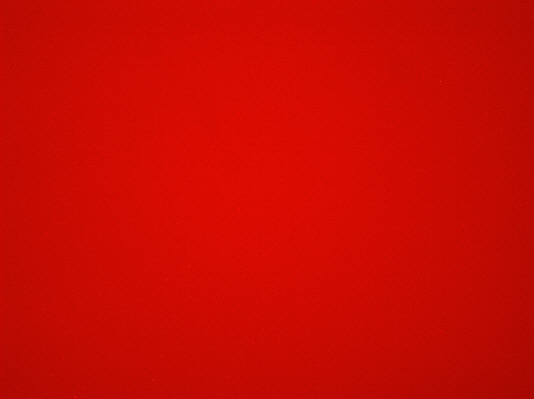

RedPl-Luxeon-567-TxRed-10X-scA1400-17gc-G200-E1000us

10X: Exposure time 1000 μsec.



RedPl-Luxeon-567-TxRed-10X-scA1400-17gc-Profile-H

RedPl-Luxeon-567-TxRed-10X-scA1400-17gc-Profile-V

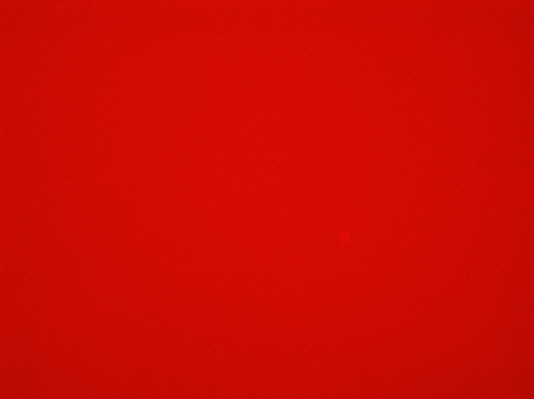

RedPl-Luxeon-567-TxRed-20X-scA1400-17gc-G200-E600us

20X: Exposure time 600 μsec.

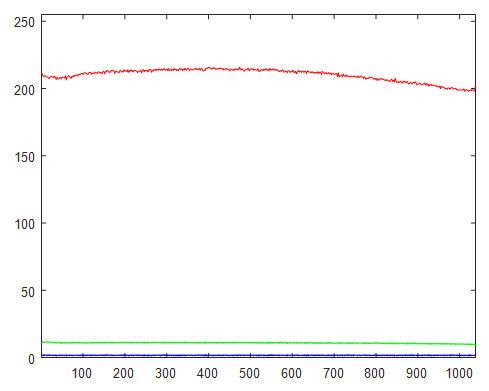

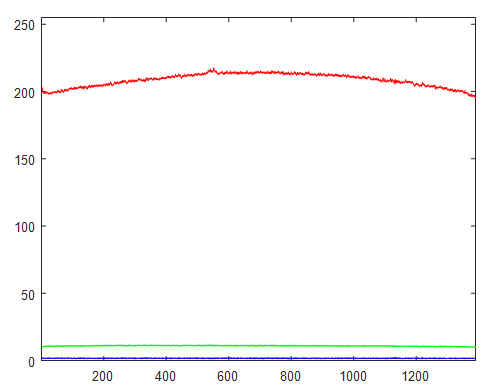

RedPl-Luxeon-567-TxRed-20X-scA1400-17gc-Profile-H RedPl-Luxeon-567-TxRed-20X-scA1400-17gc-Profile-V
