LED Light Source for Microscopes and Custom Optical Systems

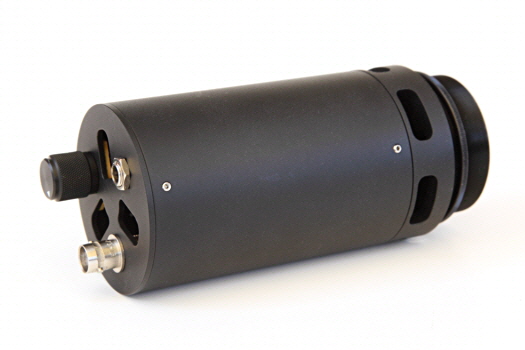

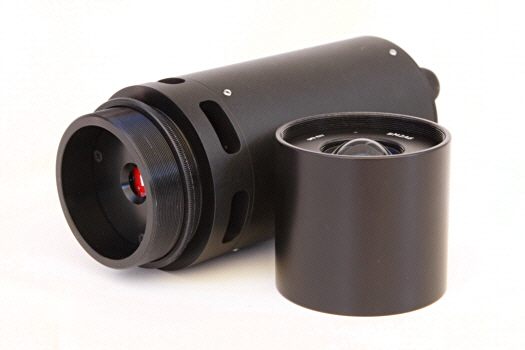

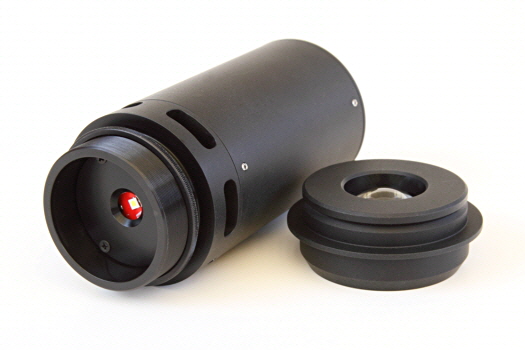

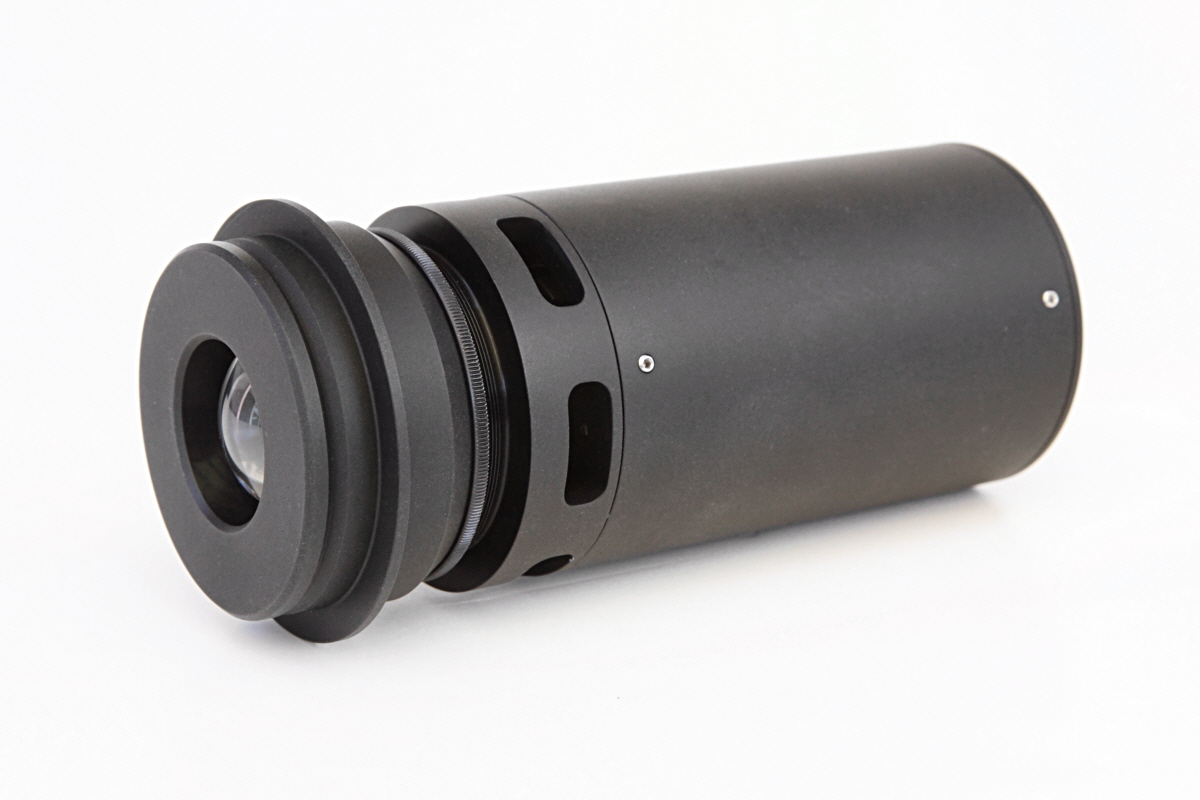

The LED Light Source is intended for epi-illumination (fluorescence, reflection) or trans-illumination (bright field, phase contrast, DIC) in microscopes and custom optical configurations. It can have a 10W white chip or an up to 5W single-color chip; a wide selection of colors is available. This single compact unit contains the LED chip on a heatsink and a constant current driver; it screws into a collimator, which has a microscope-specific mount. Intensity is controlled manually with a knob, and on-off switching may be controlled by a TTL trigger  signal.

Features and Specifications

• Wavelength options: 10W - Cool White, Neutral White, Warm White, Single color up to 5W - 365, 385, 395, 405, 457, 460, 523, 590, 623, 660, 740, 850, 940 nm peak (different color chips have different power). More wavelengths available upon request.

• For epi-illumination (fluorescence, reflection) or trans-illumination (bright field, phase contrast, DIC).

• A self-contained unit with integrated driver reduces required bench space and cable clutter.

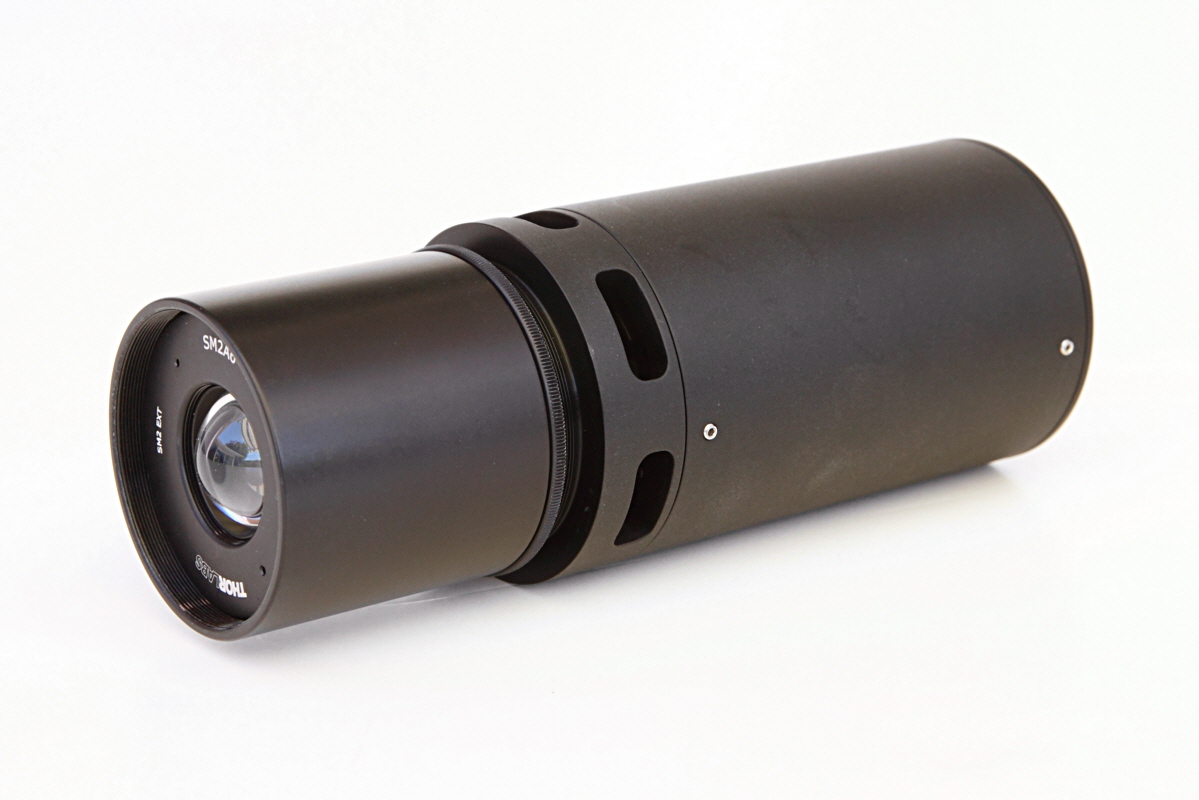

• The same unit can be used for microscopes and for custom optical configurations. Compatible with Thorlabs' tube system (SM2) and Edmund cage system.

• Adjustable focus with focus lock.

• Manually variable intensity from zero to full.

• TTL input for instant on-off switching (BNC connector).

• Extra quiet fan with adjustable speed for cooler operation, higher and more stable light output.

• Can be used for oblique illumination with stereo-microscopes or machine-vision systems.

• Requires 12V DC power supply with barrel connector 5.5mm/2.1mm, + inside, - outside.

• Can be powered by a 12V battery and used in the field without power mains.

• Size and weight (not including collimator) Ø 63mm, 150mm long, 0.4 kg.

• Electrical: 120/240V, 50/60Hz, ? W max

• Exposure time on standard specimens: bead slide, autofluorescent plastic.

• Aspheric collimating optics provides uniform illumination.

Ordering

P/N	Description	Price USD
030-PP-CC   PP - Power (W): 10, 05   CC - Color: CW (cool white), NW (neutral white), WW (warm white), or dominant wavelength, e.g., 457 nm. Examples: 030-10-CW, 030-05-457	LED Light Source	$390.
035-MM MM - Microscope mount: 01-Olympus BX, 02-Nikon Eclipse, 03-Zeiss Axio, 04-Leica DM	Collimator	$110.
104-81	Power Supply 12V 5.5A	60.

To place an order, email a PDF of your Purchase Order to sales@tofrainc.net.   For more information send a message to info@tofrainc.net
